SHO 3600

Zglobni proširljivi nosač za SLIM TV 30" - 60"

For television
Load capacity 50 kg
Min. screen diagonal 30 "
Max. screen diagonal 60 "
Function and installation
Variability extendable
Way of movement mechanical
Tilt downwards 20
Swivel +/- 60°
Level correction +/- 3°
Min. distance from wall 6 cm
Max. distance from wall 47,3 cm

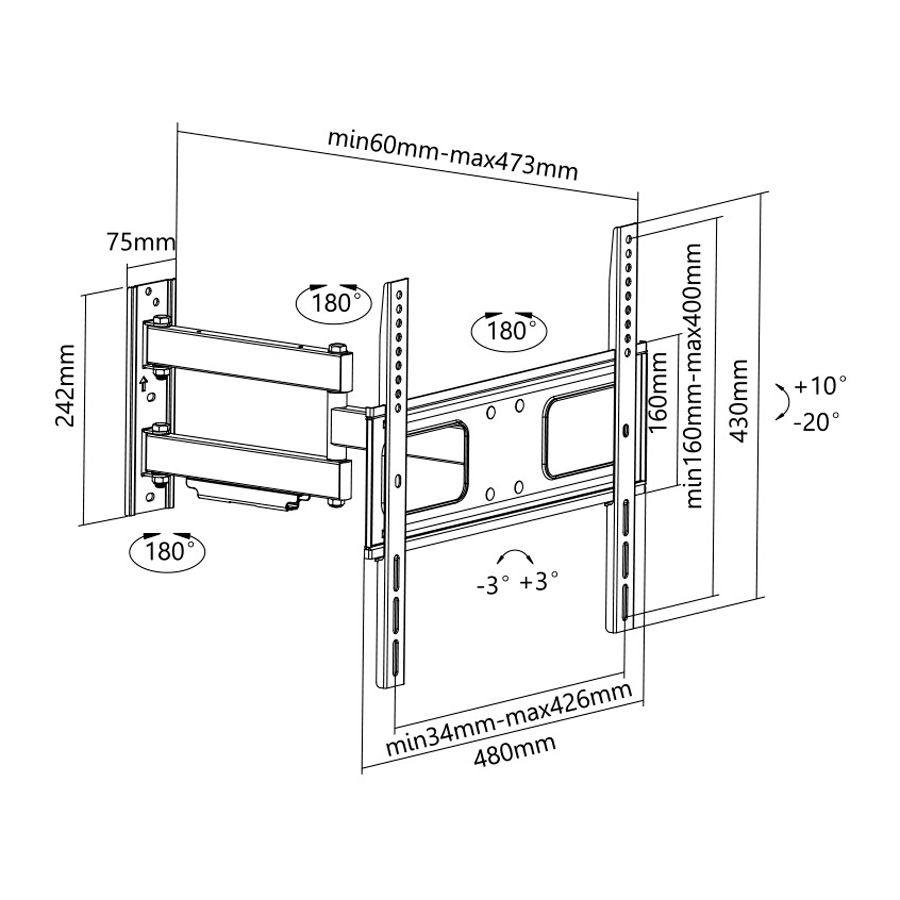

Dimensions of mount
Height 43 cm
Width 48,1 cm
Depth 6 cm
TV mount pad dimensions
Minimum span 34 X 160 MM
Maximum span 426 X 400 MM
VESA 75x75
VESA 100x100
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x200
VESA 600x300
VESA 600x400
Other
Material steel
Spirit level
Removal prevention mechanism
Colour black
